Tapered Implant Drill with Integrated Mechanical Depth Stop for Controlled Conical Osteotomy Preparation

Precision-engineered tapered implant drill featuring an integrated mechanical depth stop mechanism that physically limits maximum penetration depth during osteotomy preparation, ensuring reproducible drilling depths across multiple surgical sites without reliance on visual estimation alone.

The conical geometry is systematically calibrated to match the external body taper of contemporary conical implant systems, enabling gradual, controlled expansion of the medullary space while preserving cortical plate integrity through progressive lateral bone displacement. Manufactured from vacuum-remelted surgical-grade stainless steel with a mirror-polished cutting surface to facilitate smooth engagement and reduce frictional resistance during rotational advancement.

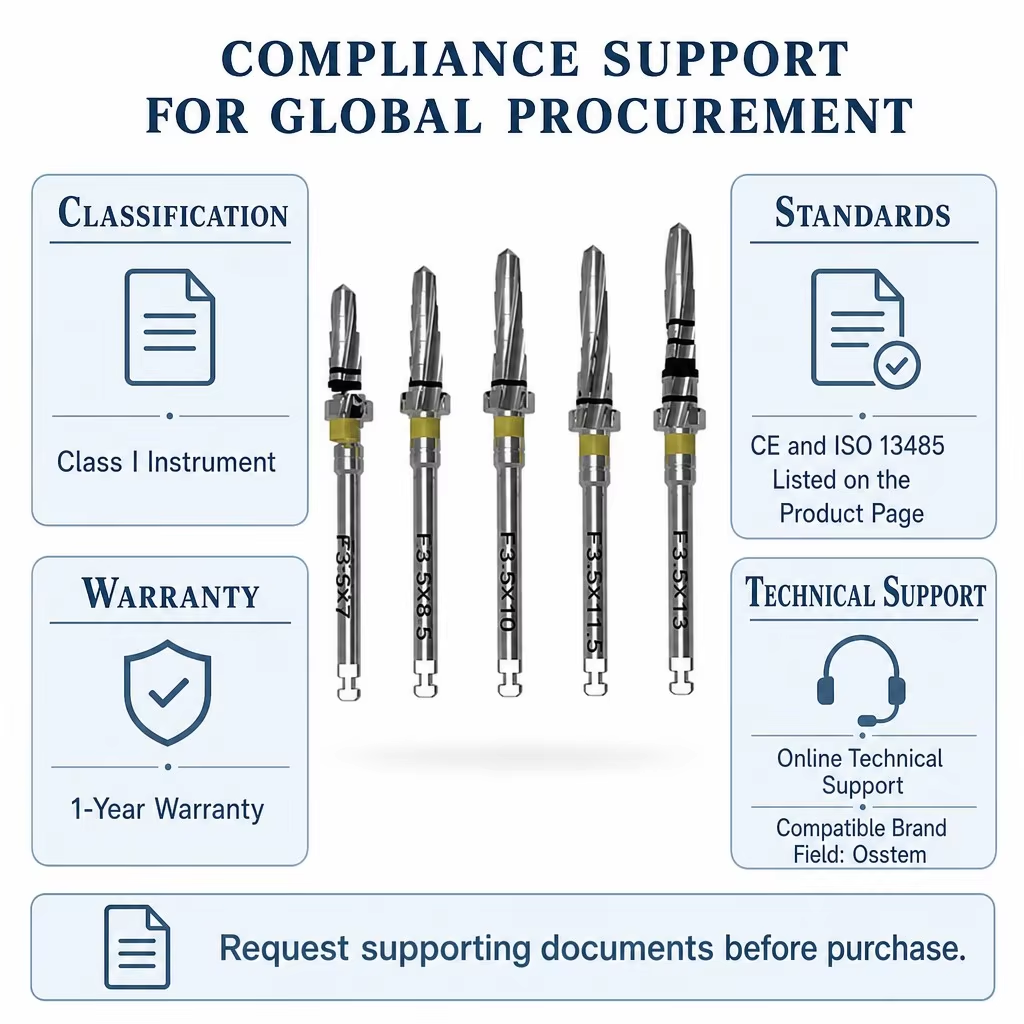

The drill is offered in a comprehensive range of diameters, spanning from initial taper diameters to final seating dimensions, alongside multiple working length variants to accommodate diverse alveolar ridge anatomies and implant platform heights. Each drill shank is color-coded according to its nominal diameter using an anodized ring system for rapid visual differentiation during sequential instrumentation, supplemented by laser-engraved depth graduations at 2mm intervals along the working segment for secondary depth confirmation.

The entire instrument is fully autoclavable at 134°C for up to 500 sterilization cycles without measurable loss of dimensional accuracy, cutting efficiency, or mechanical stop function integrity. The depth stop collar is designed with a smooth, rounded inferior surface to minimize soft tissue trauma upon contact with the bone crest, and the drill shank features a standard 2.35mm diameter fitting compatible with most commercially available surgical handpieces and external irrigation delivery systems.
