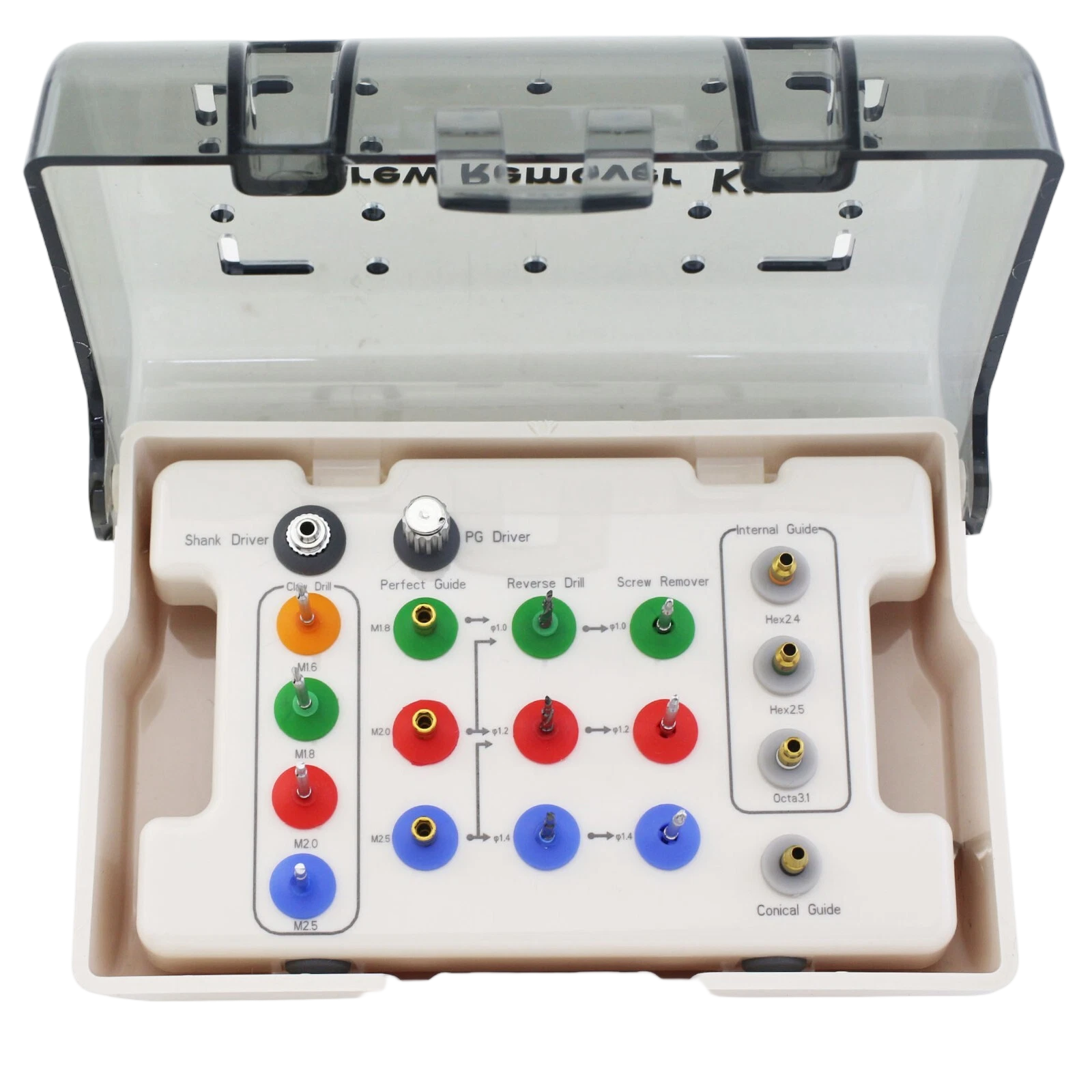

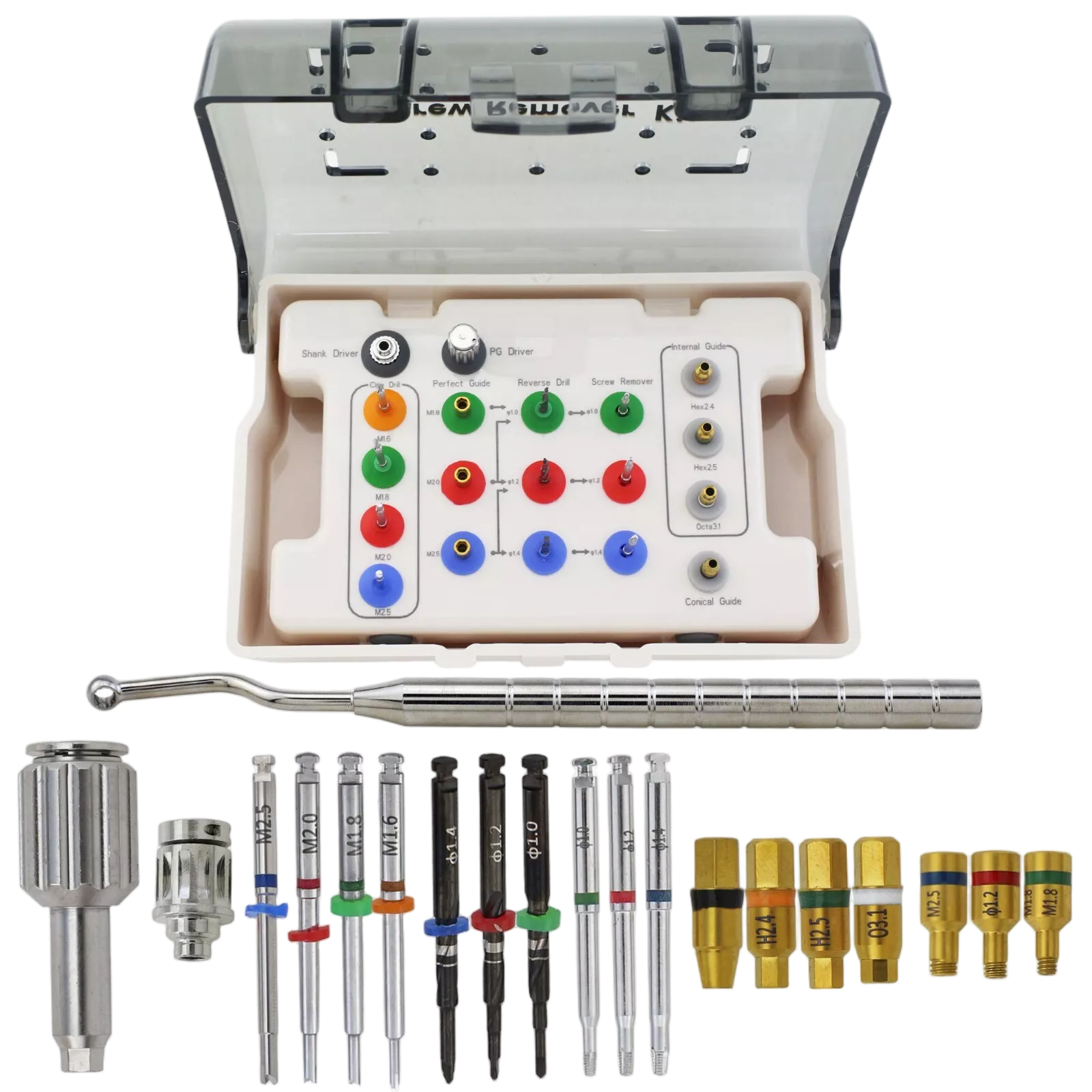

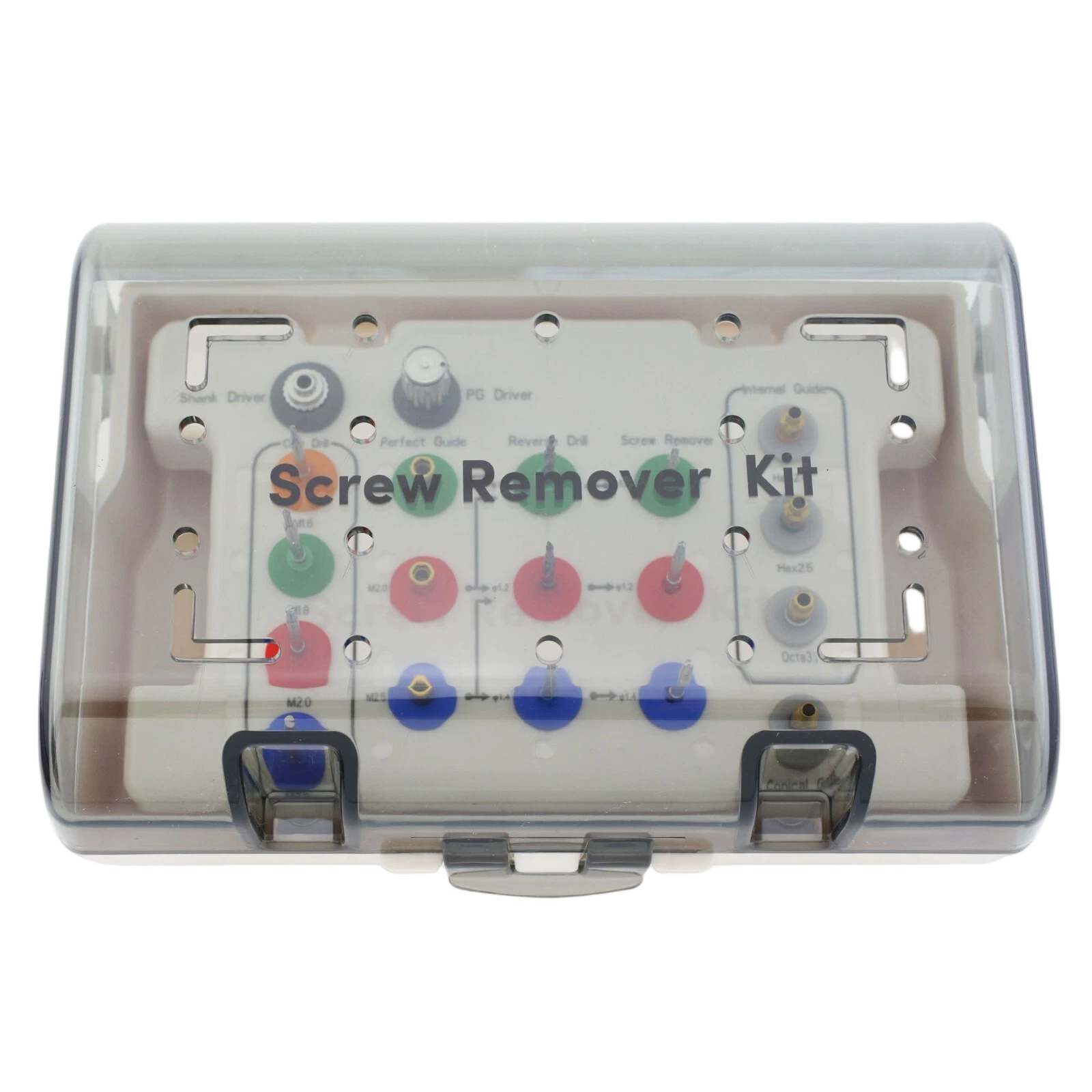

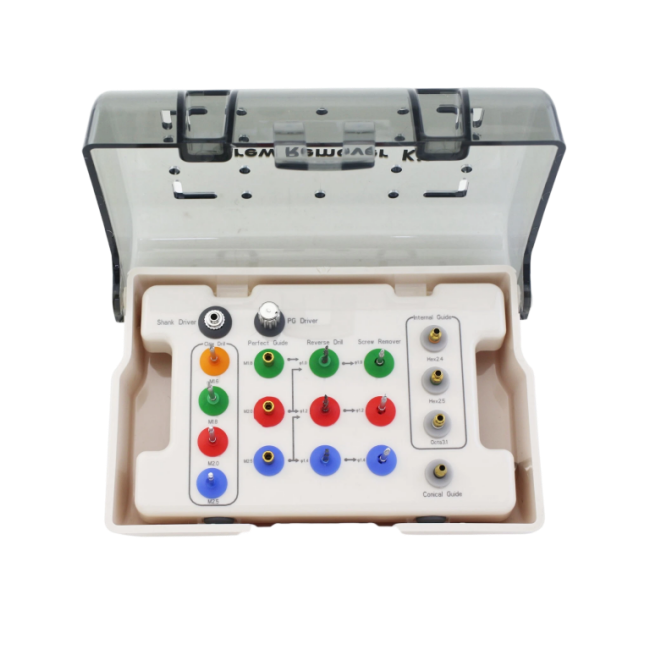

Dental Implant Screw Remover Kit Claw Reverse Drill Guide Driver NeoBiotech SR
description1
description2

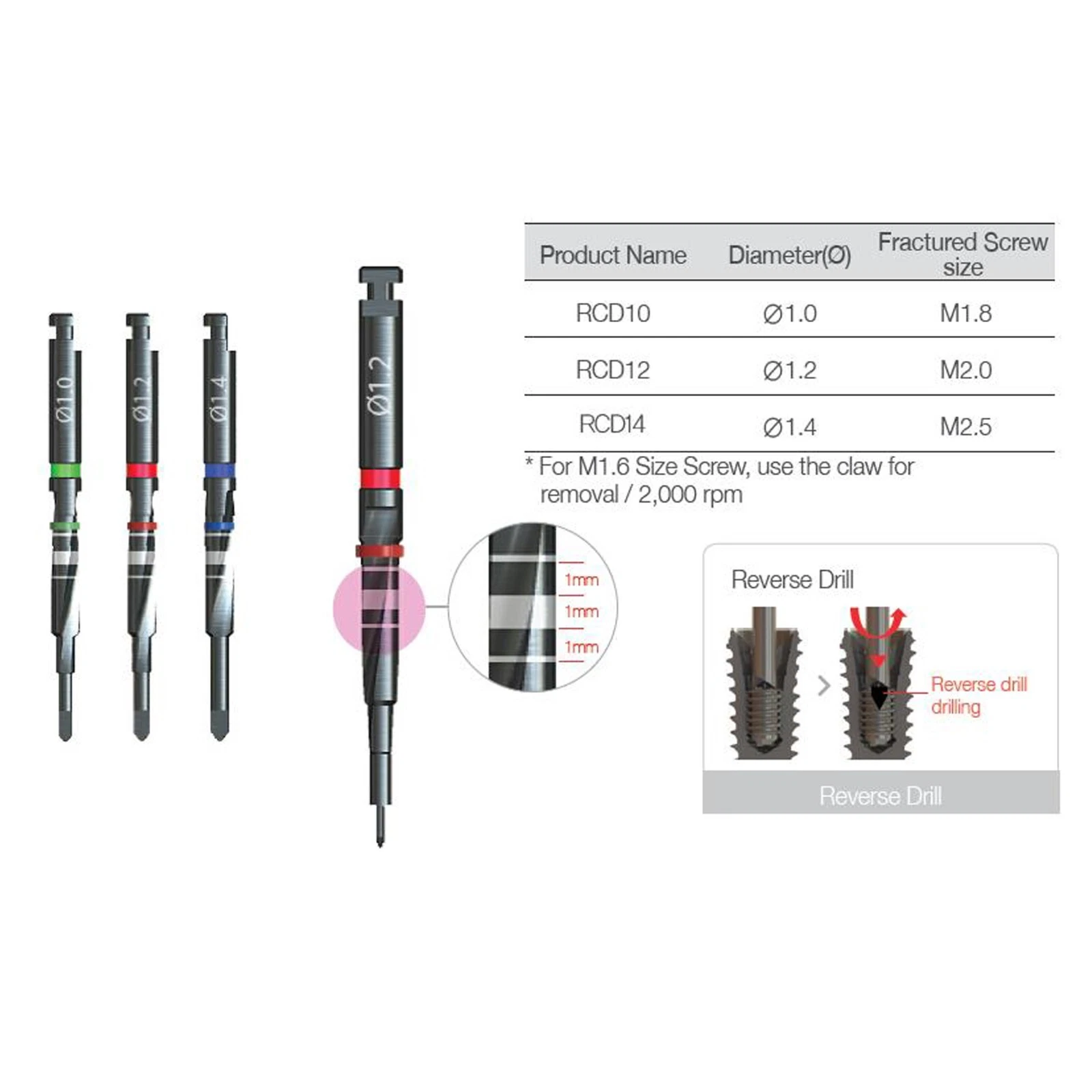

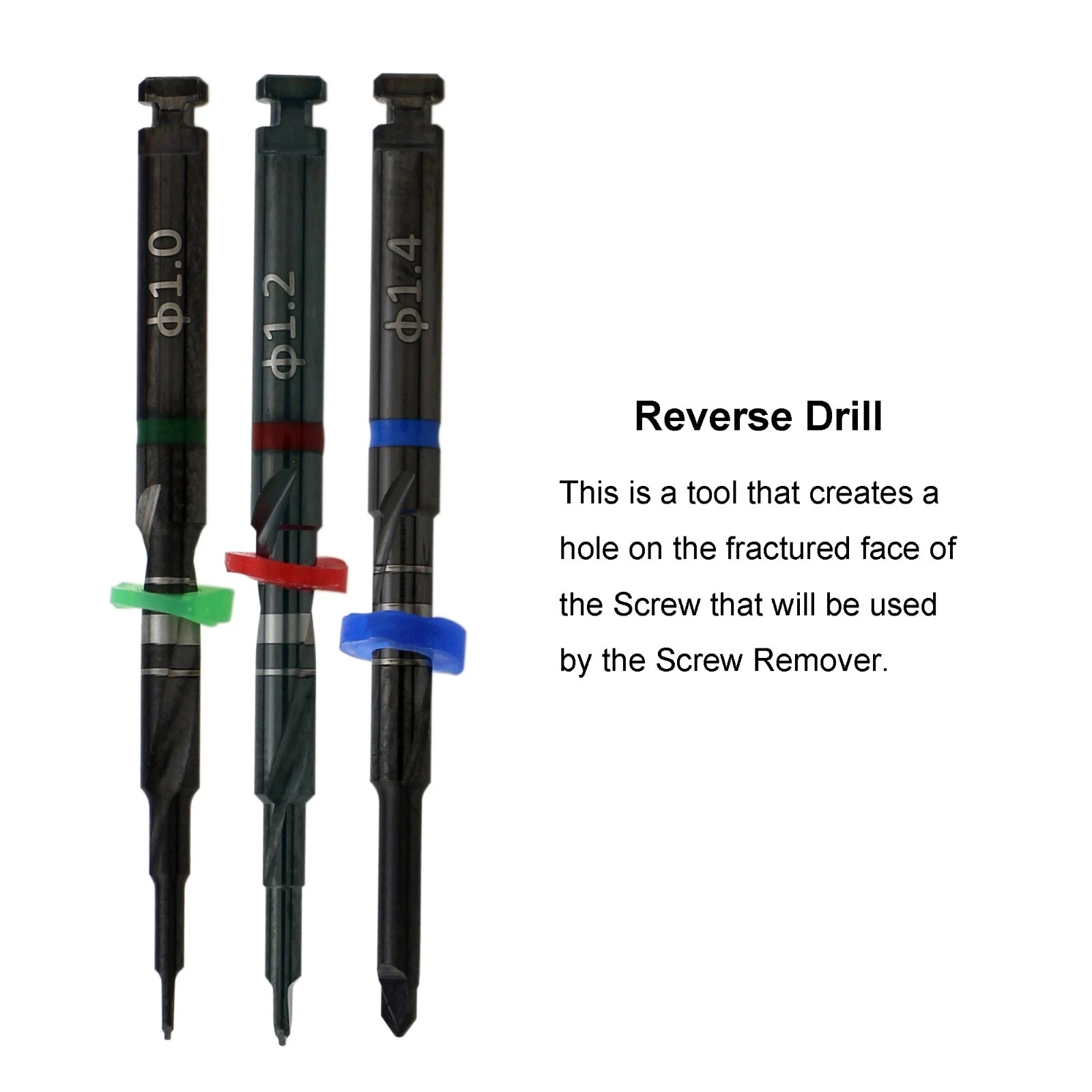

This is a tool that creates a hole on the fractured face of the Screw that will be used by the Screw Remover.
- After selecting the appropriate Reverse Drill for the size of the screw that needs to be removed, it must be used by connecting a guide for the fi xture (Perfect/ Conical/Internal/External Guide). The depth of the drill can be adjusted from 1 mm to 3 mm, because the Drill body has markings.

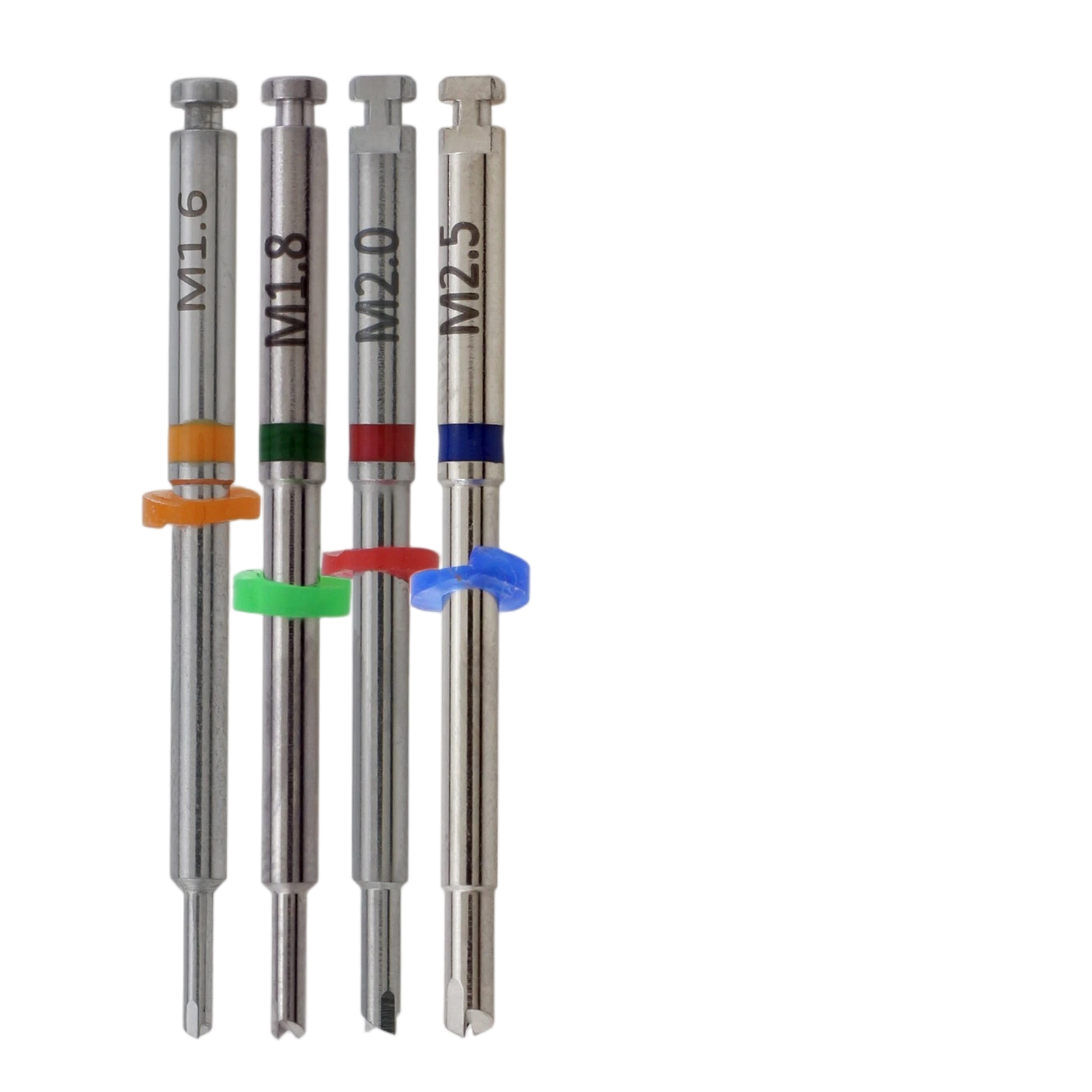

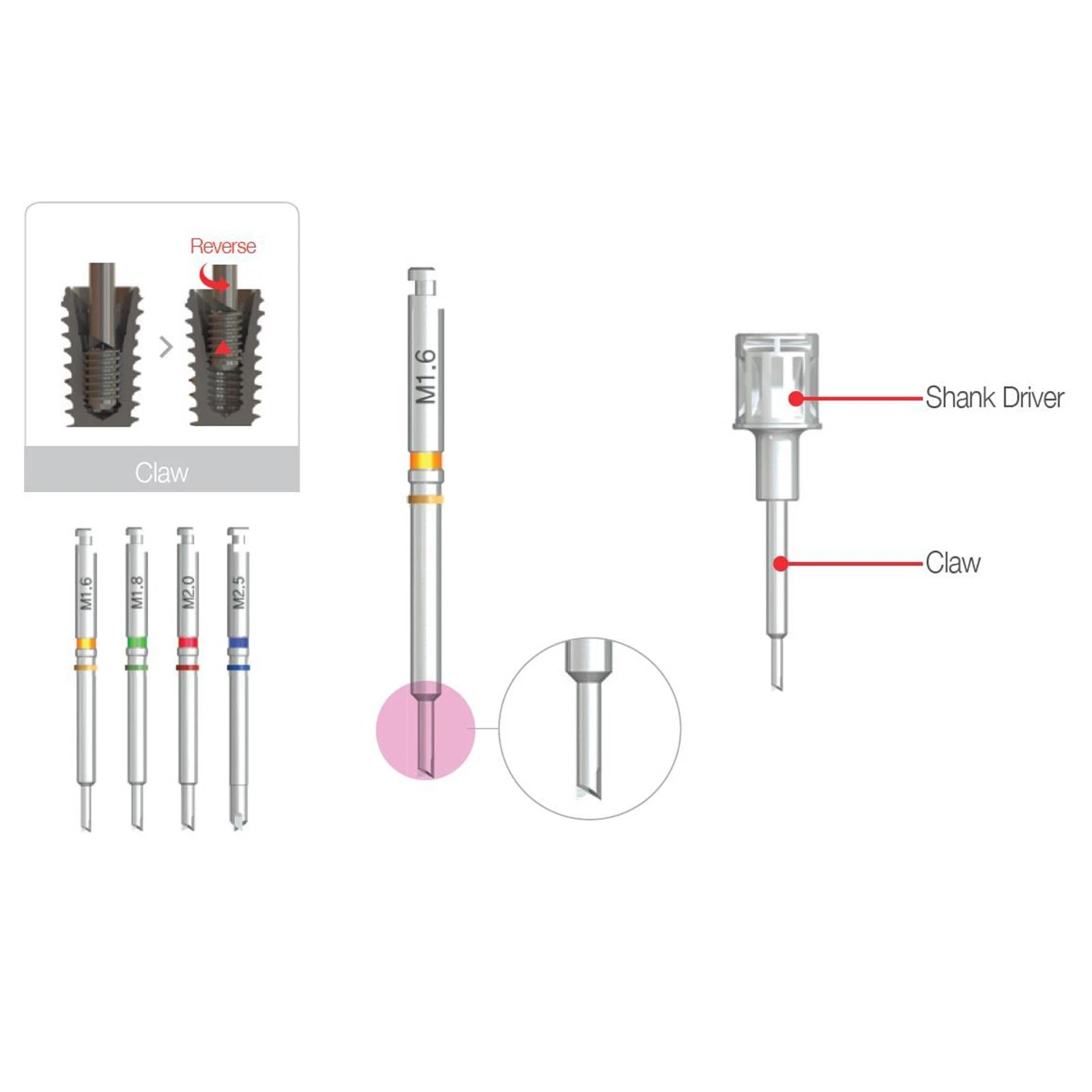

The removal of an M1.6 size Screw Should utilize the Claw.

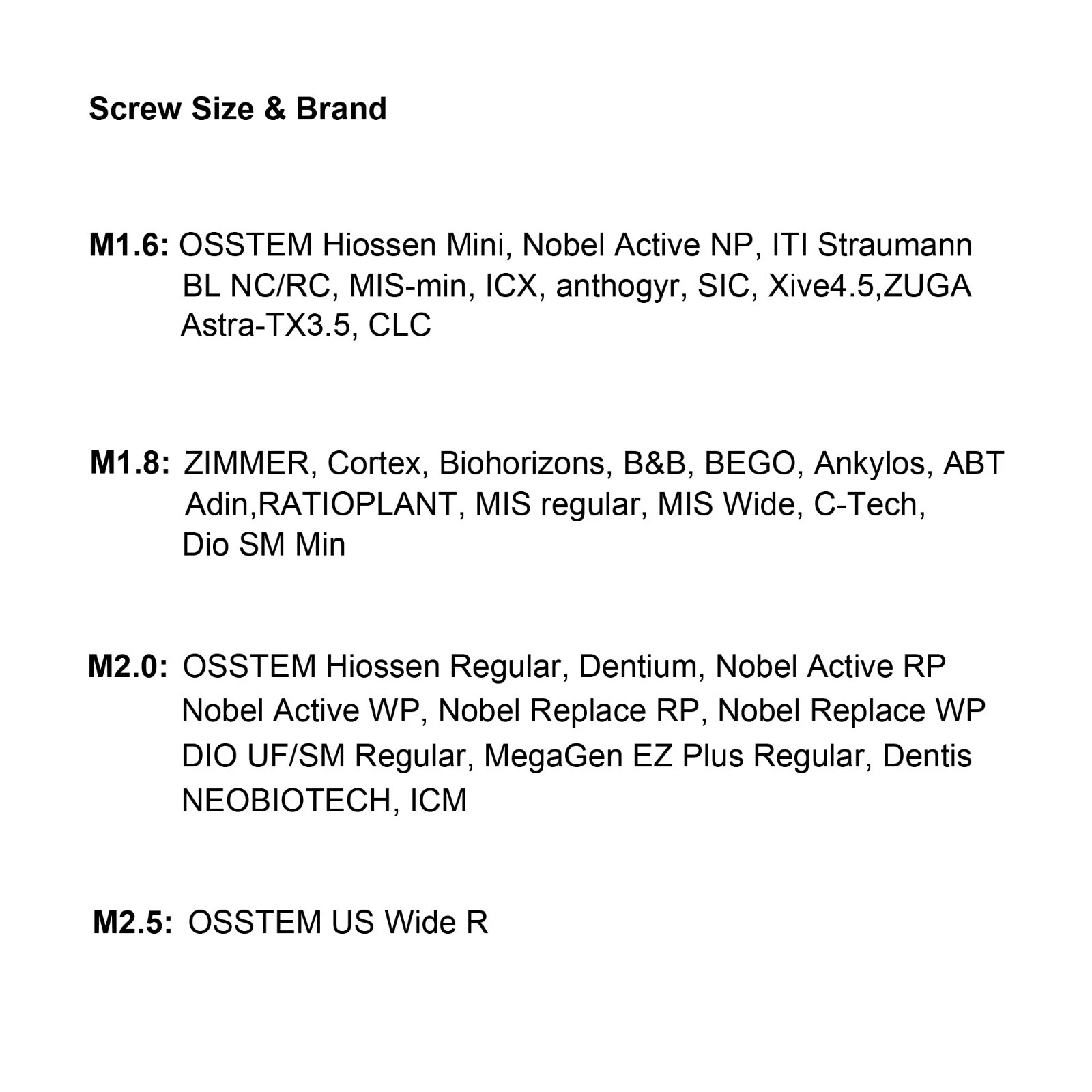

- Although diff erent manufacturers produce diff erent sizes of abutment screws, except in rare cases, typically they utilize screws of Size M1.6, M1.8, M2.0, or M2.5. (‘M’ stands for a metric screw. The number indicates the external size of the screw. For example, “M1.6 Screw” indicates that it is a metric screw the external diameter of Which is 1.6 mm).
|
Product Name |
Diameter(Ø) |
Fractured Screw size |
|
RCD10 |
Ø 1.0 |
M1.8 |
|
RCD12 |
Ø 1.2 |
M1.8 |
|
RCD14 |
Ø 1.4 |
M1.8 |

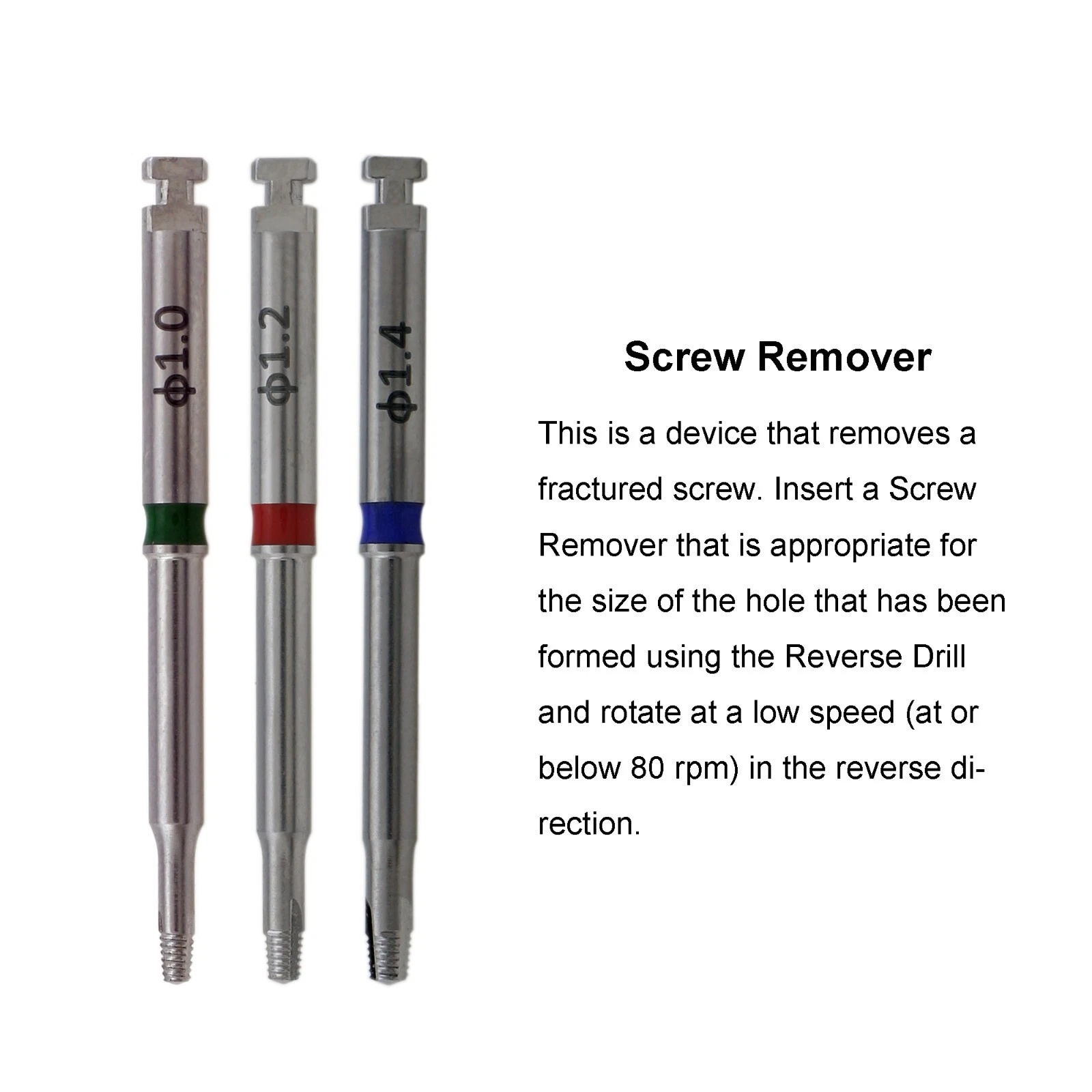

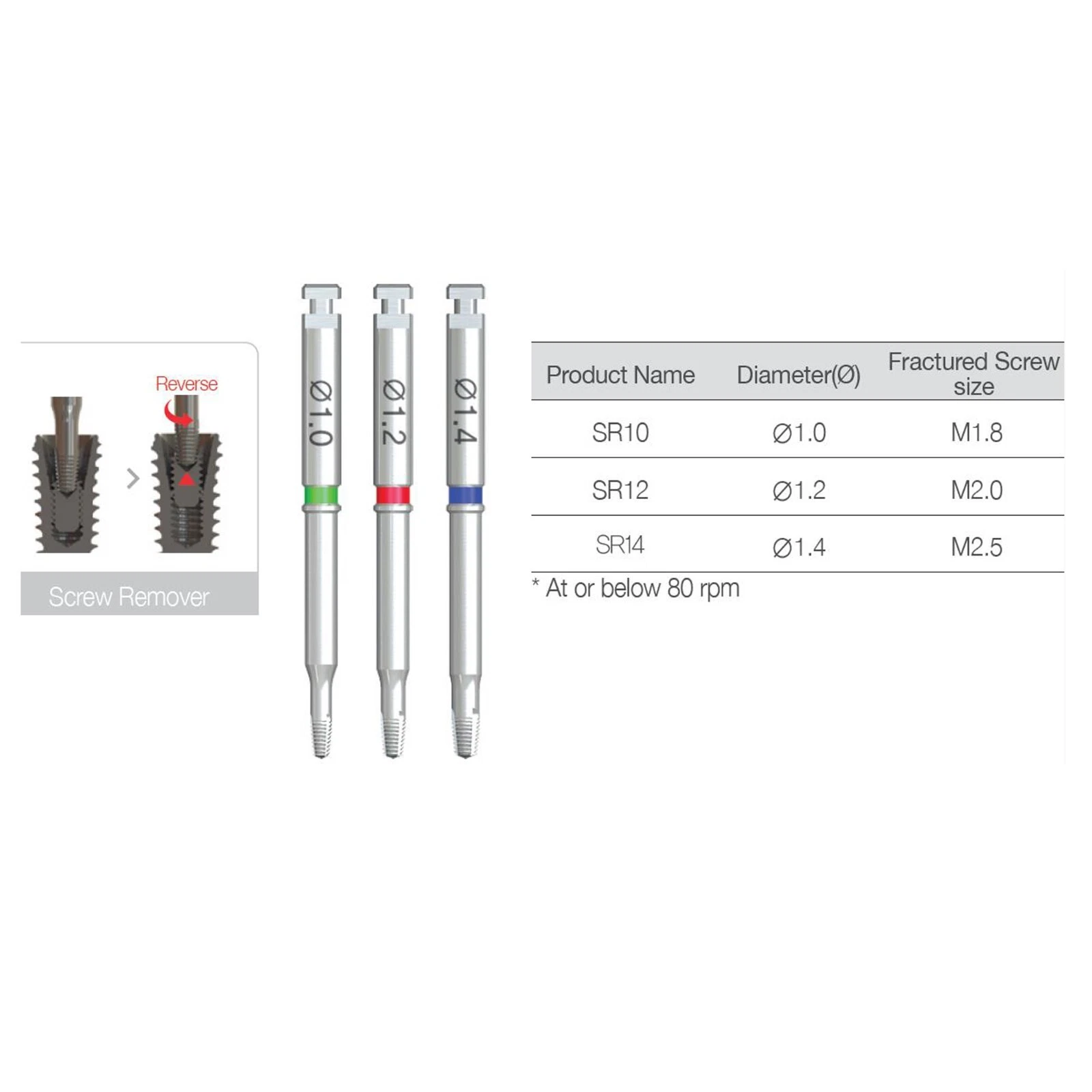

This is a device that removes a fractured screw. Insert a Screw Remover that is appropriate for the size of the hole that has been formed using the Reverse Drill and rotate at a low speed (at or below 80 rpm) in the reverse direction.
- The Screw Remover was designed in a tapered shape so as to increase, as it turns, the amount of friction, which is necessary to loosen the Screw.
|
Product Name |
Diameter (Ø) |
Fractured Screw size |
|
SR10 |
Ø 1.0 |
M1.8 |
|
SR12 |
Ø 1.2 |
M2.0 |
|
SR14 |
Ø 1.4 |
M2.5 |

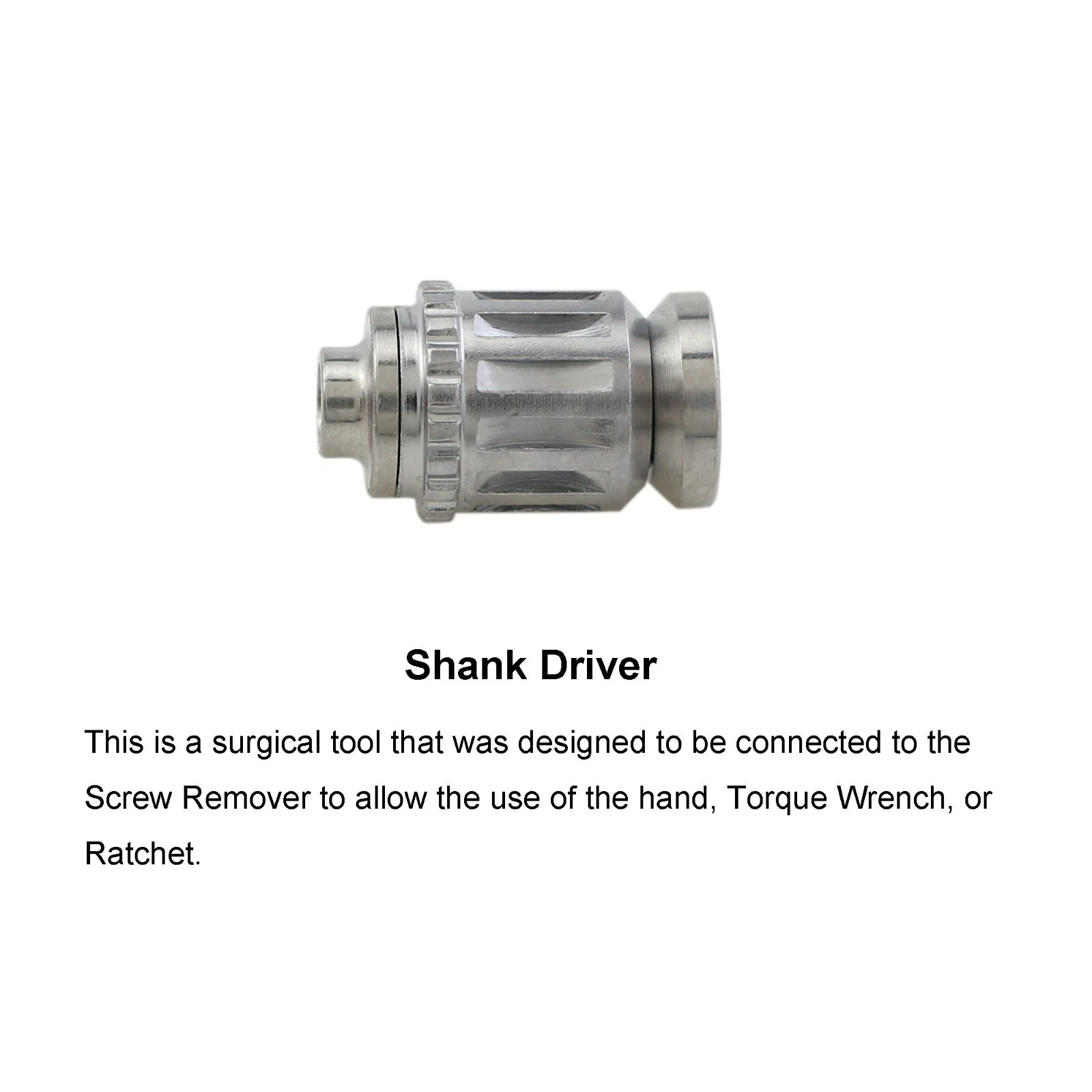

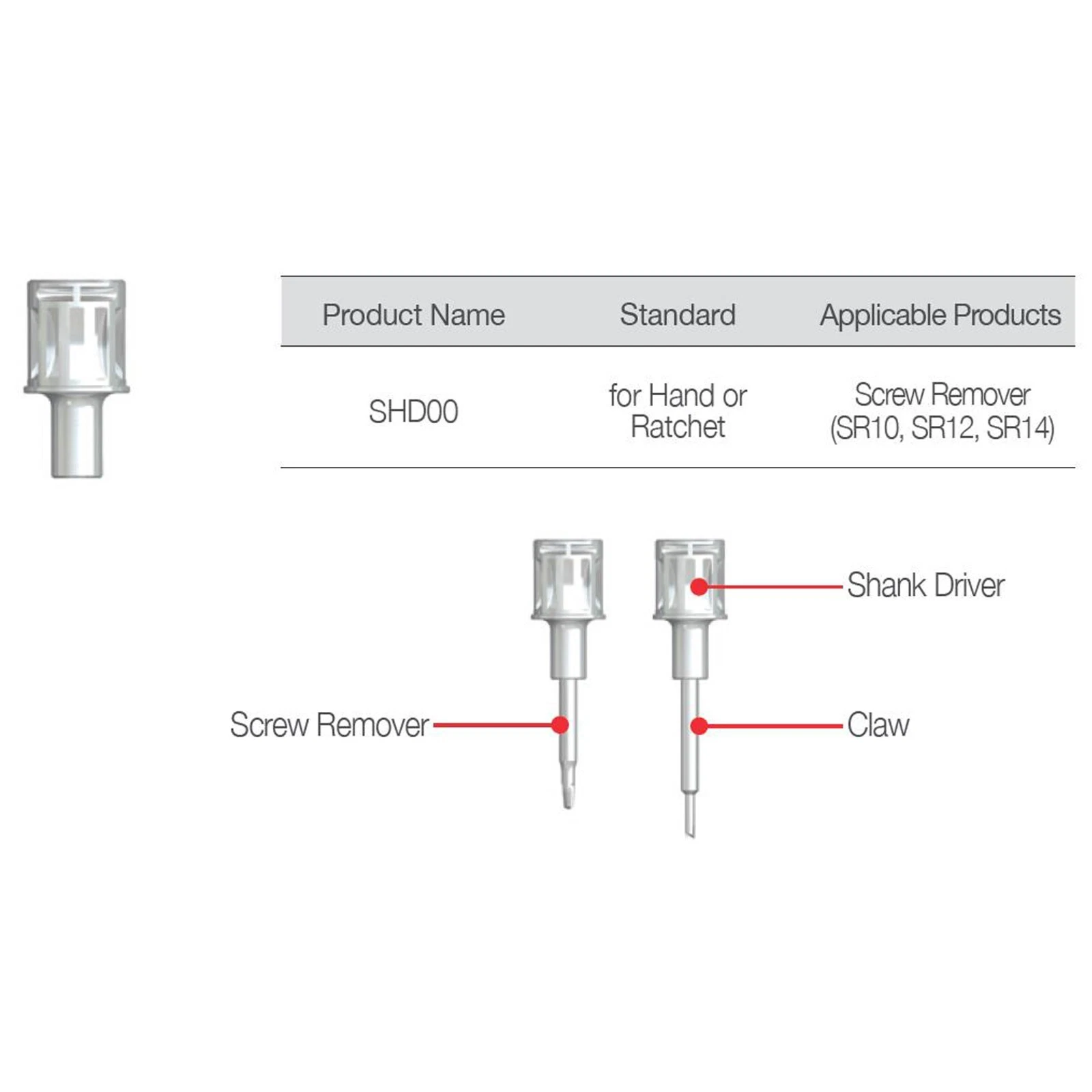

This is a surgical tool that was designed to be connected to the Screw Remover to allow the use of the hand, Torque Wrench, or Ratchet.
|
Product Name |
Standard |
Applicable Products |
|
SHD00 |
for Hand or Ratchet |
Screw Remover (SR10, SR12, SR14) |

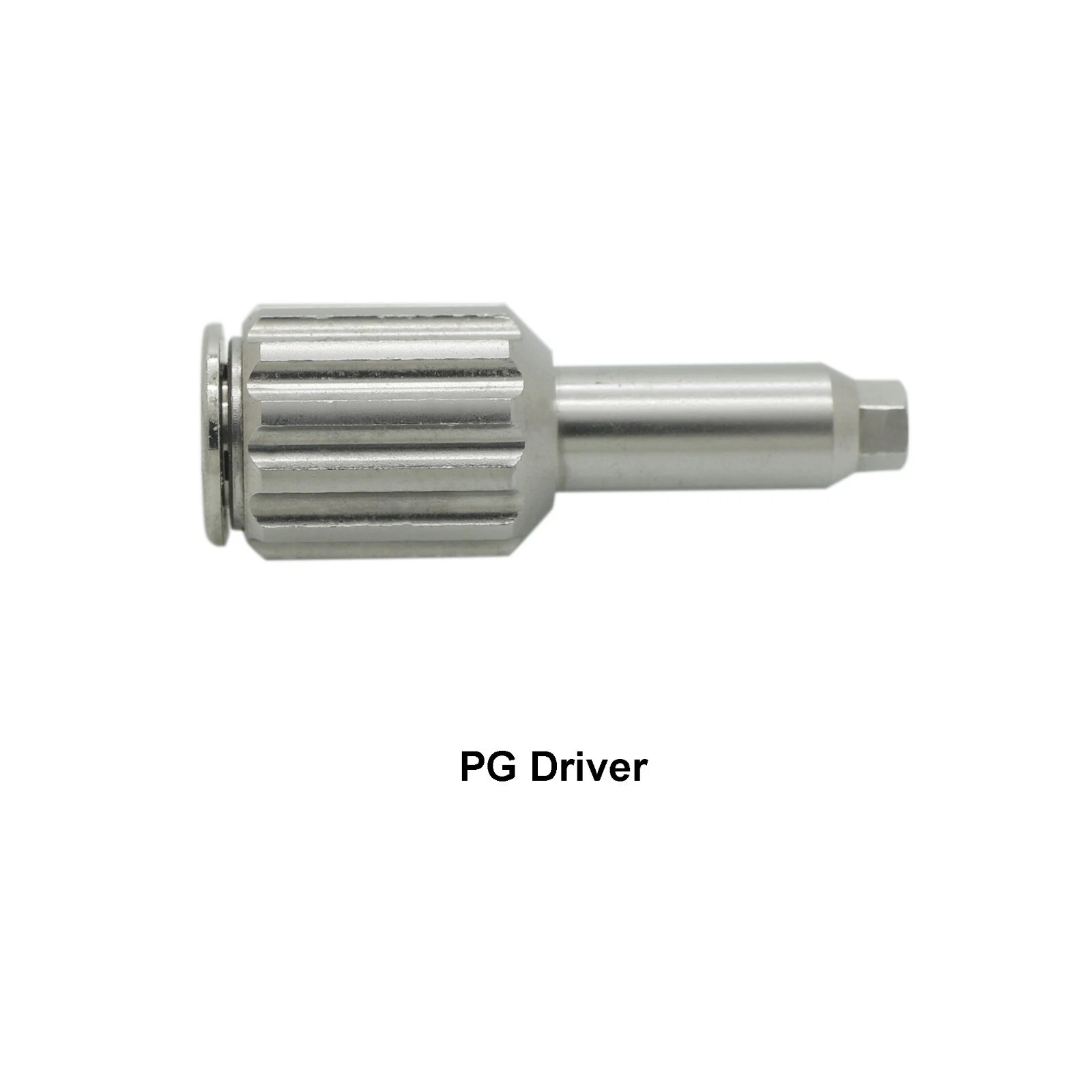

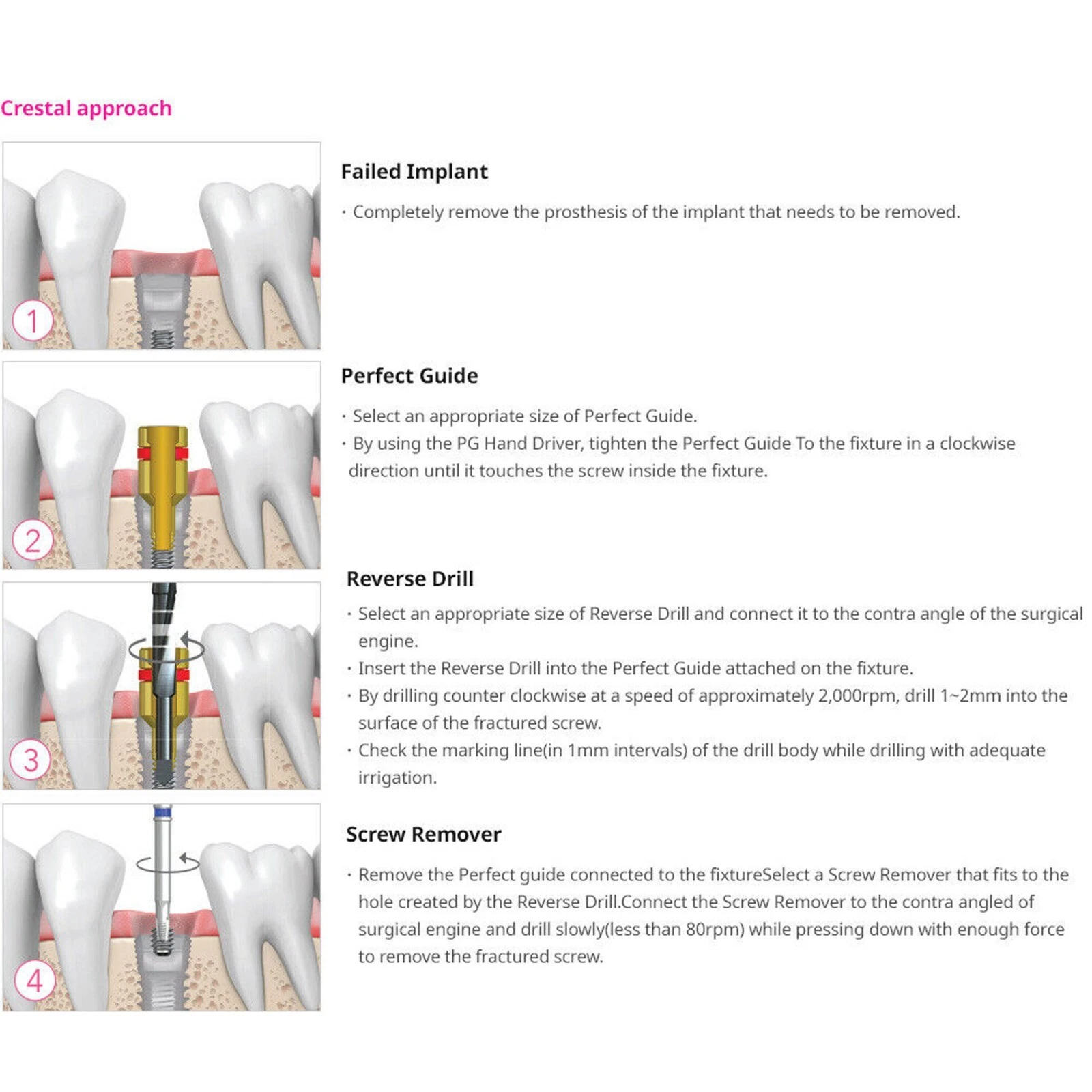

- The Perfect Guide acts as a Guide for the Reverse Drill. It is used when the screw is fractured at the lower part of the female screw inside the Fixture. It is connected to PG Hand Driver and is directly applied to the Fixture female Screw.
- The Perfect Guide can be safely used because it has a stop structure inside that prevents the Reverse Drill from drilling more than 2 mm.

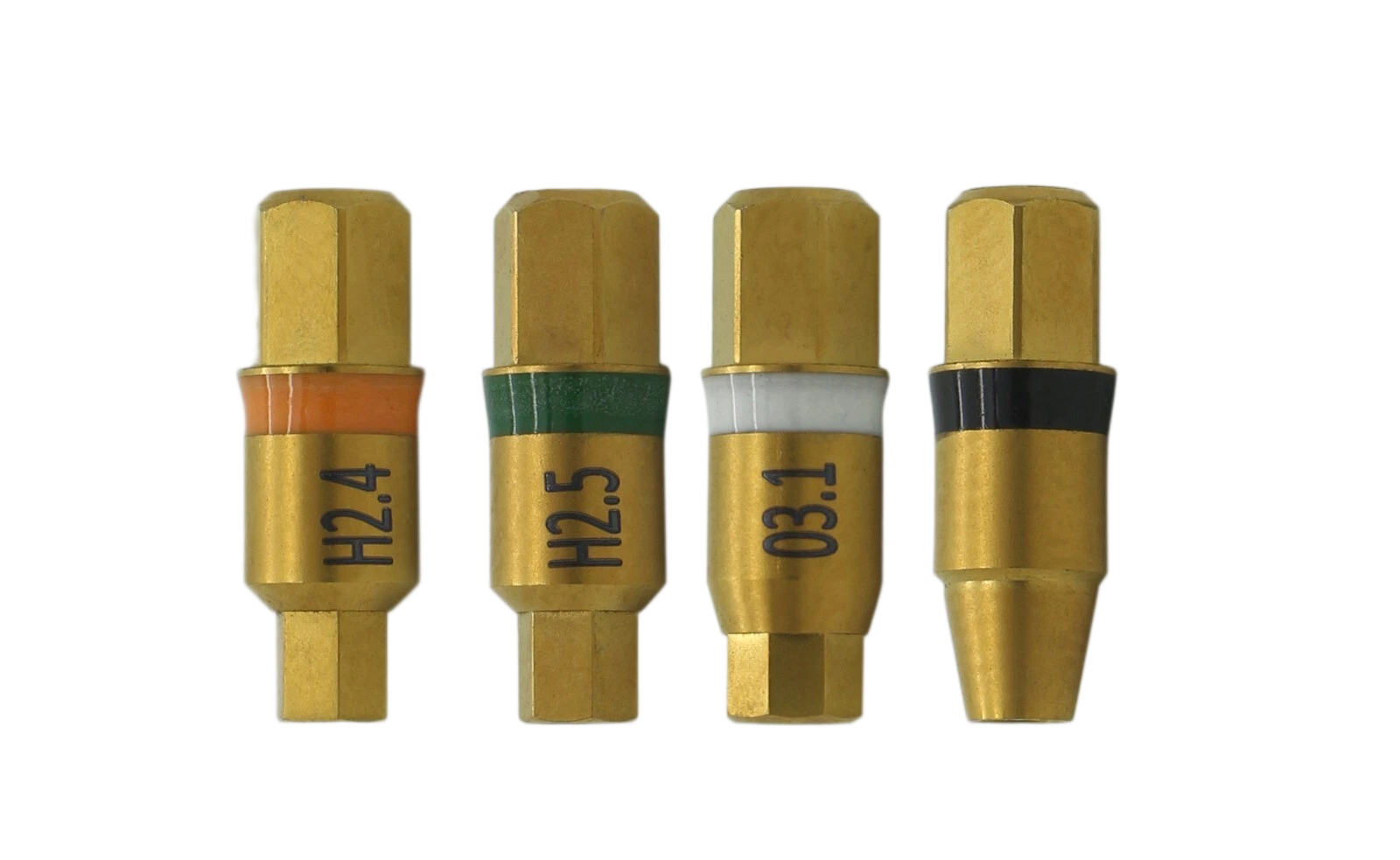

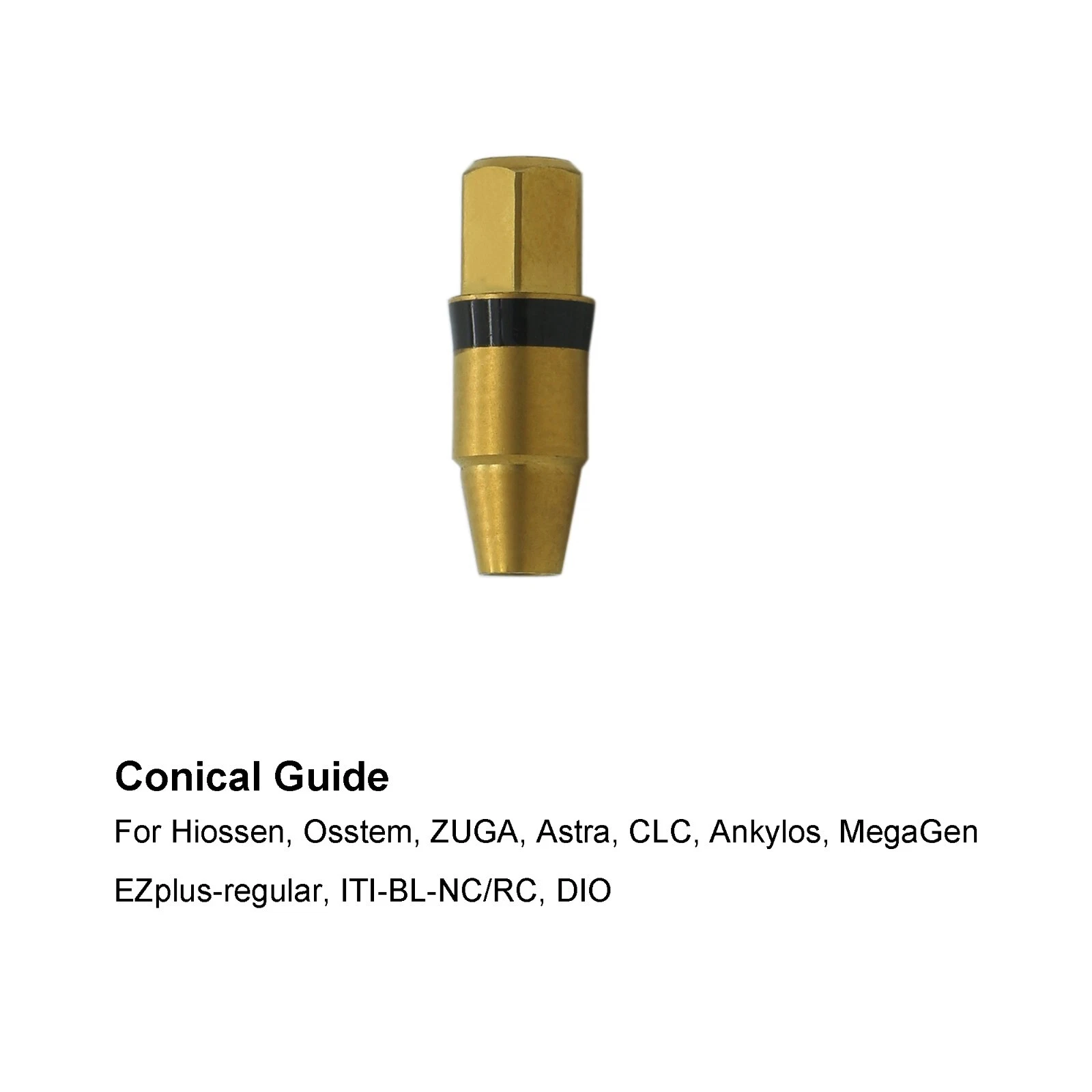

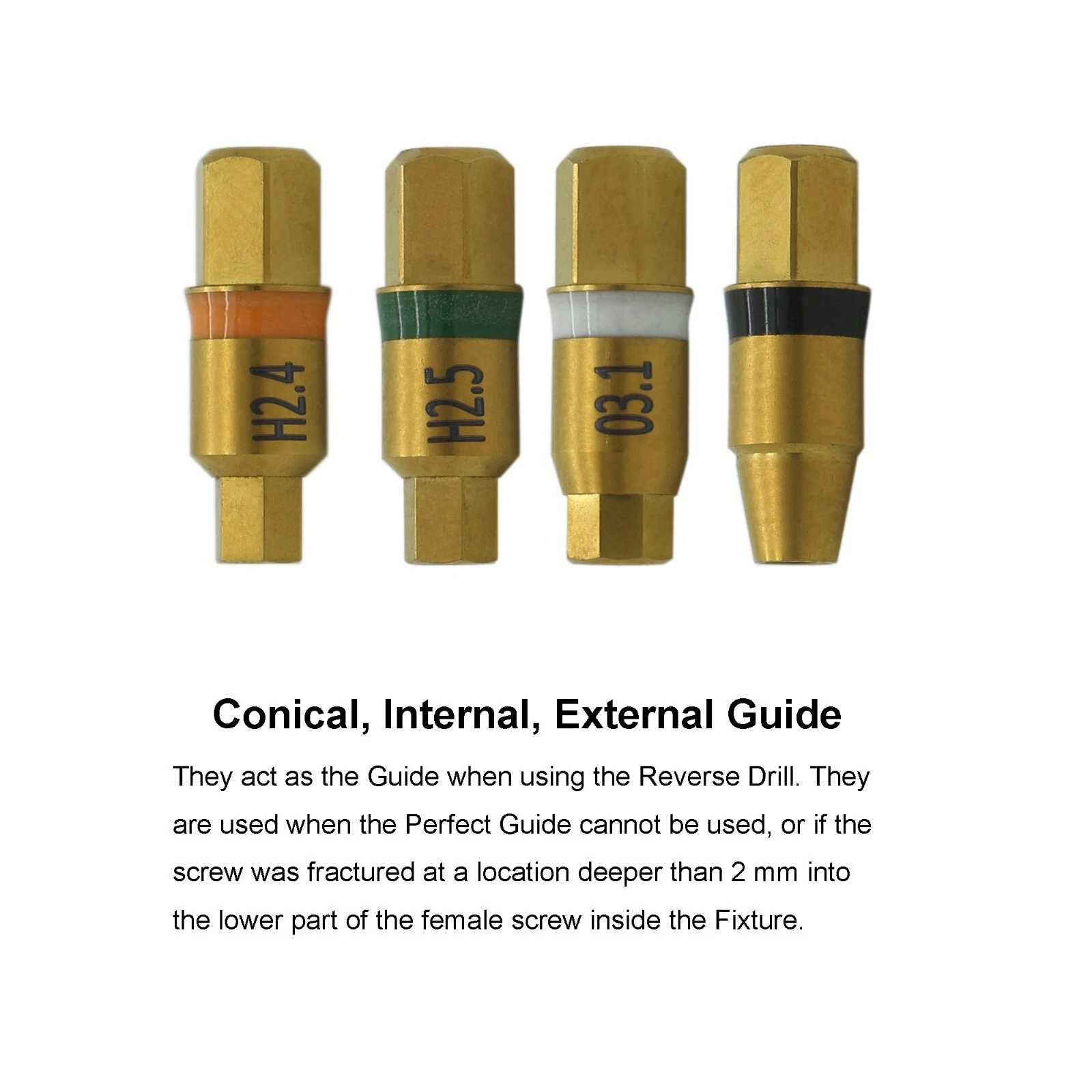

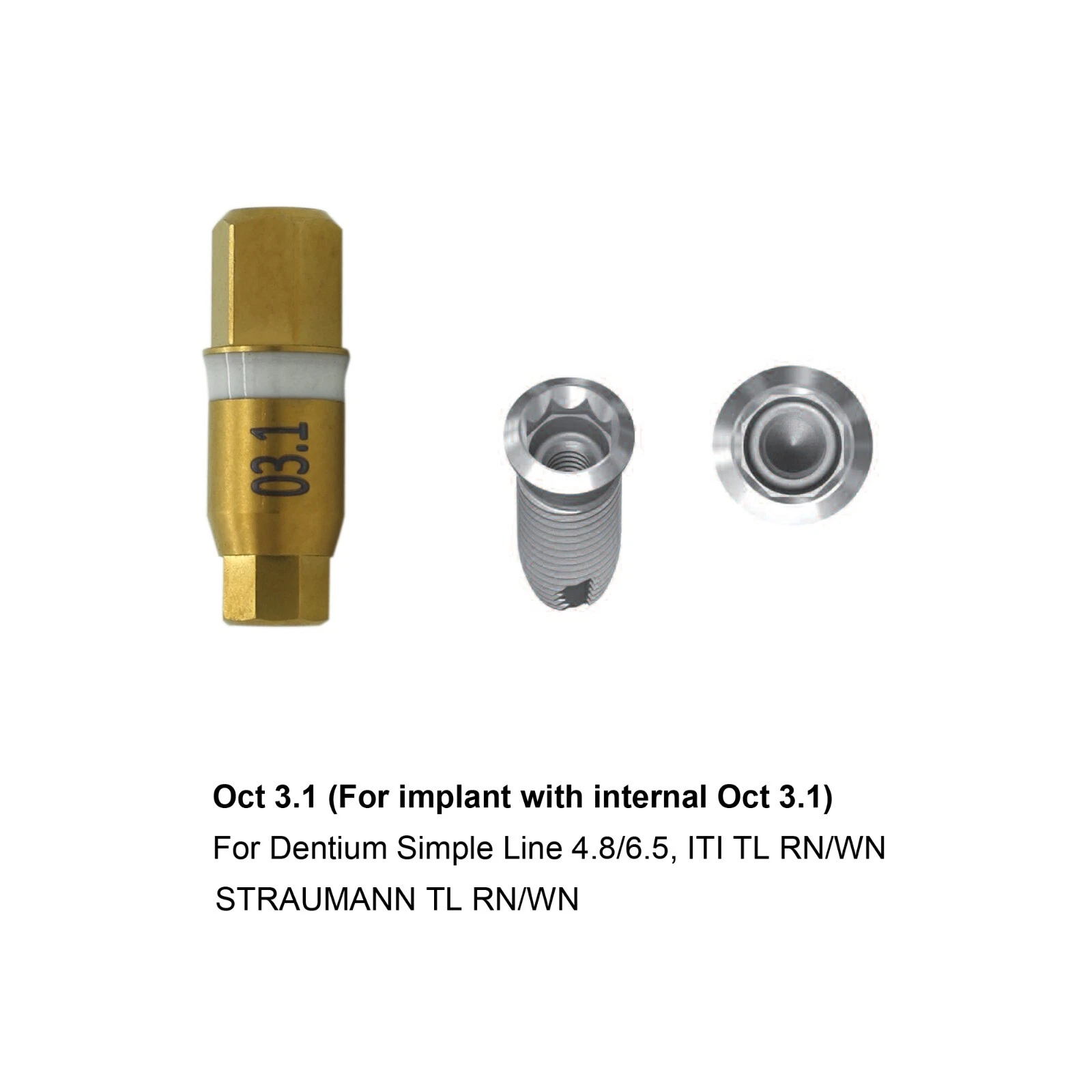

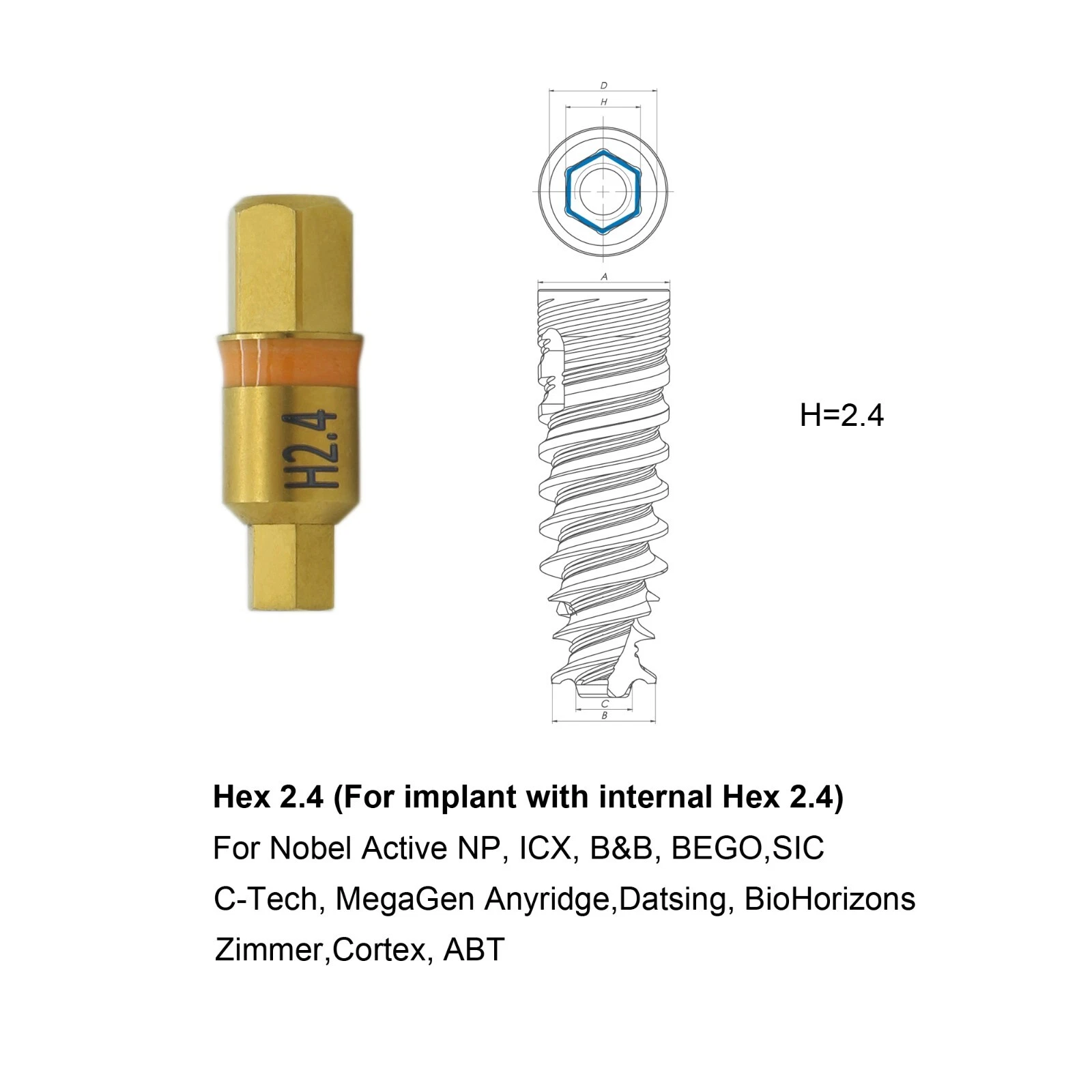

- They act as the Guide when using the Reverse Drill. They are used when the Perfect Guide cannot be used, or if the screw was fractured at a location deeper than 2 mm into the lower part of the female screw inside the Fixture. - The Guide appropriate for connecting to the Fixture must be selected.
- This can be easily affixed to the Fixture by connecting it to the 3.5 Double Hex part of the Conical, Internal, or External Guide.
Product size
