Osstem Compatible Dental Implant Guide Tool Dental Implant Taper Kit
description1
description2

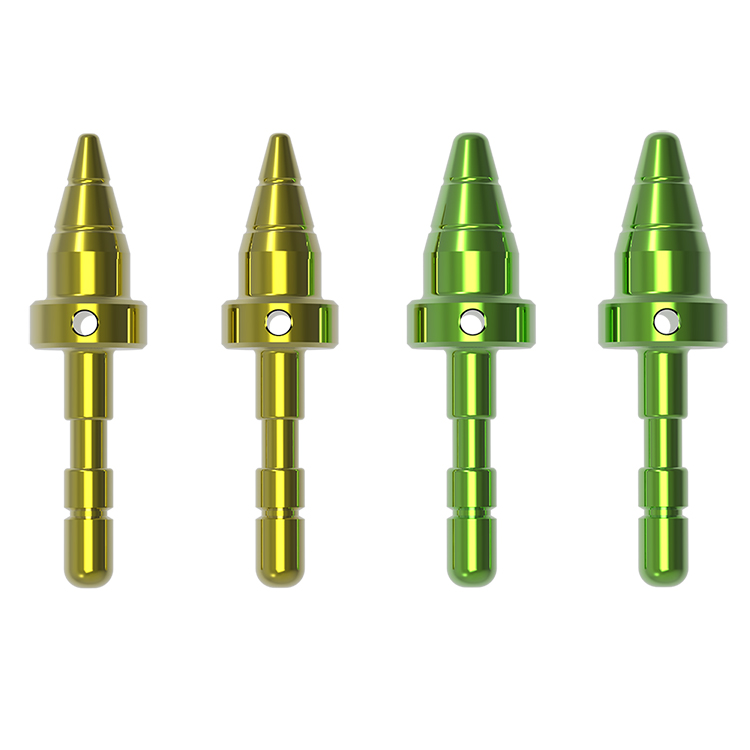

Parallel Pin
Description: The Parallel Pin is designed specifically for the Taper Drill.
Function: It is used to check the position and direction of bone preparation, ensuring precise alignment.
Design: The pin is color-coded according to the fixture diameter (F3.5: Yellow, F4.0: Green), making it easy to identify and use.
Advantage: Ensures accurate positioning and direction, reducing the risk of errors during the implant procedure.

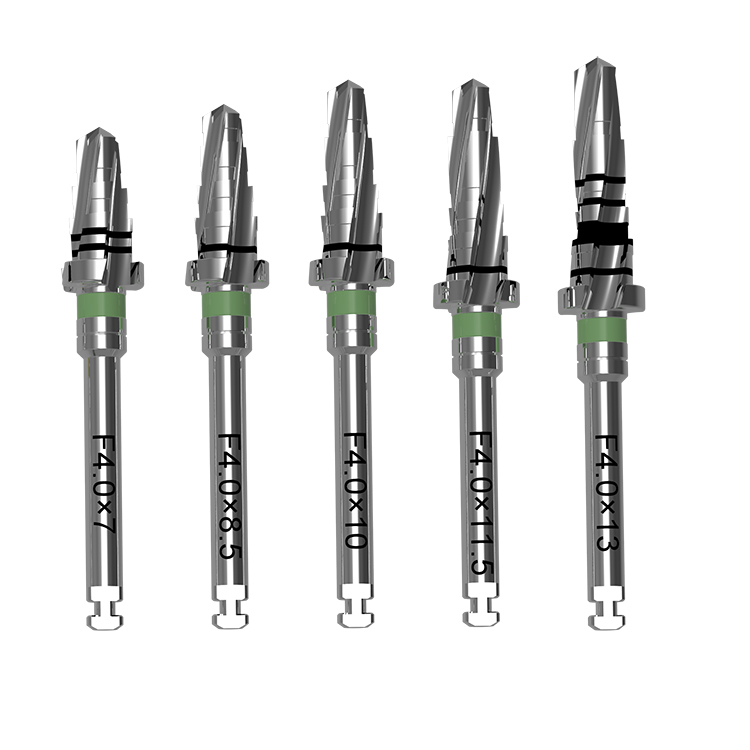

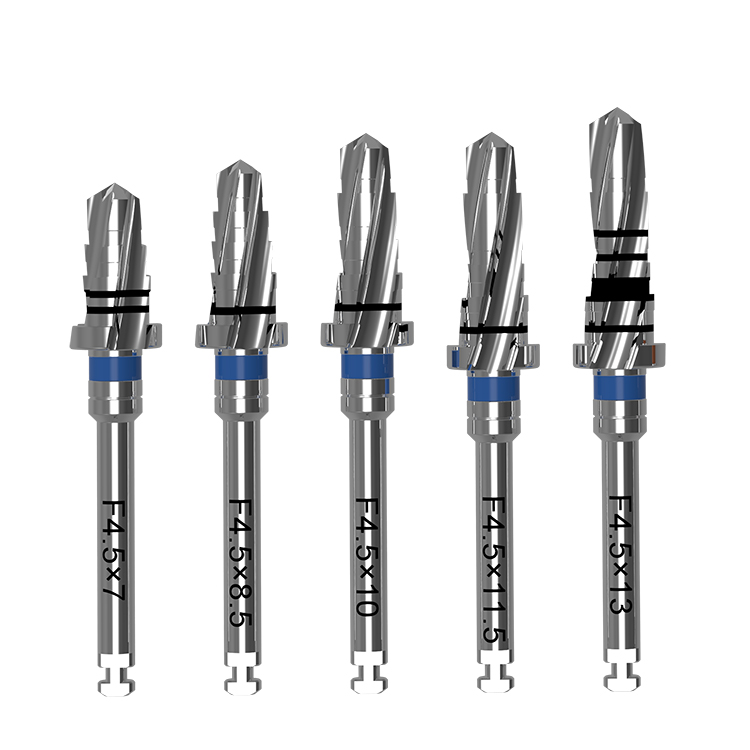

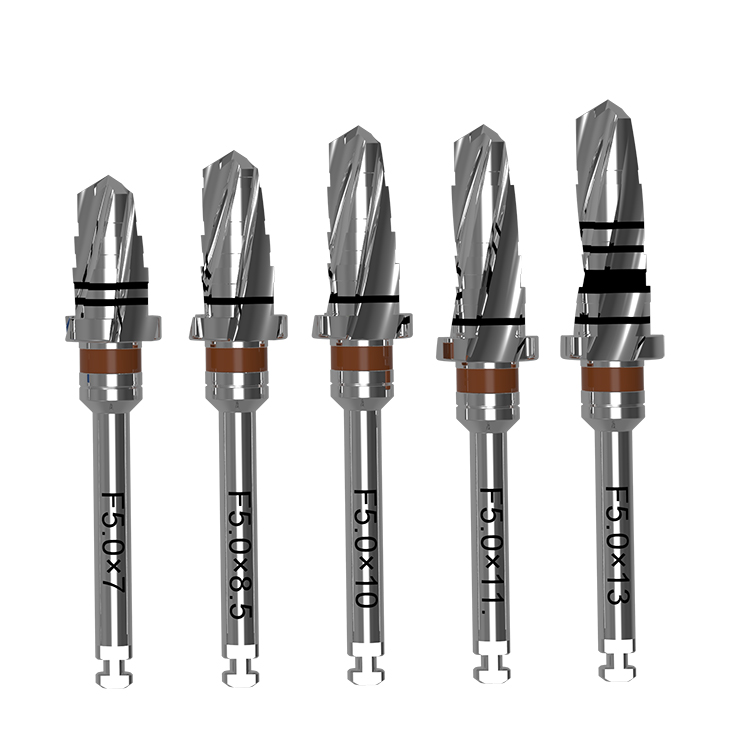

Taper Cortical Drill
(Taper Fixture TSIII, SSIII, USIII)
• Drill used for removing cortical bone from hard bone (used right after Taper Drill)
• Dedicated drill for each xture diameter
• F3.5~5.0 drill marking line : bottom line for placing 8.5mm or smaller Fixtures,
and top line for 10mm or greater Fixtures
• F5.5 drill marking line : bottom line for placing 6mm or smaller Fixtures,
midline for 7mm Fixtures, and top line for 10mm or greater Fixtures
• Drilling up to the lower marking line recommended

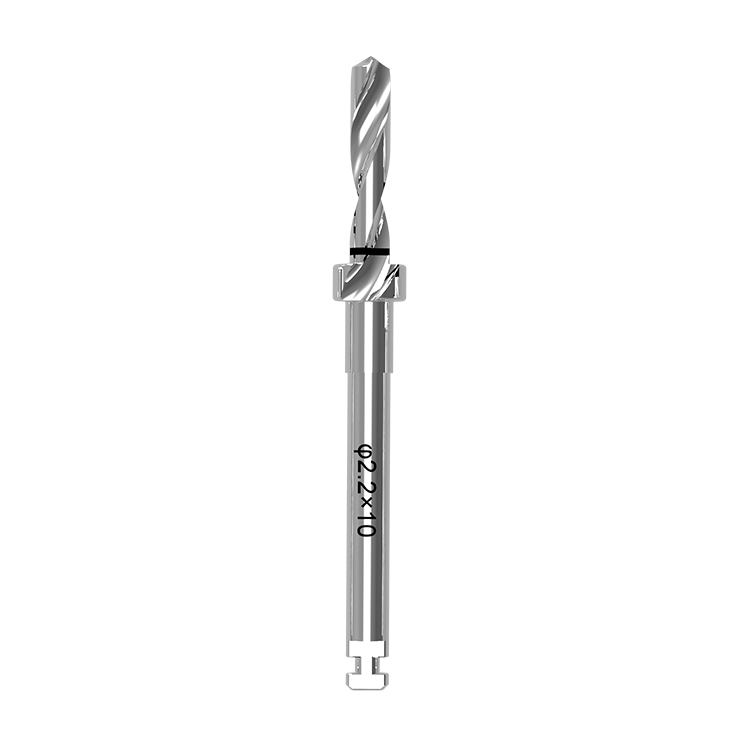

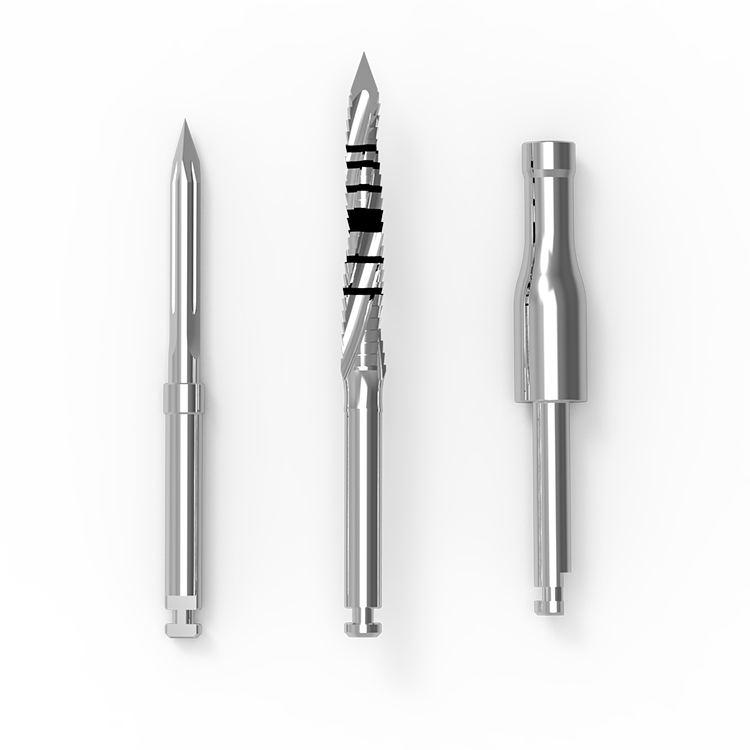

Guide Drill, Side Cut Drill, and Twist Drill
Description: These drills are used for initial marking on the working model.
Usage: The recommended usage cycle is 10 times, ensuring durability and reliability.
Procedure: Additional drilling is recommended after using the round bur for optimal results.
Recommended Speed: 1,200–1,500rpm.

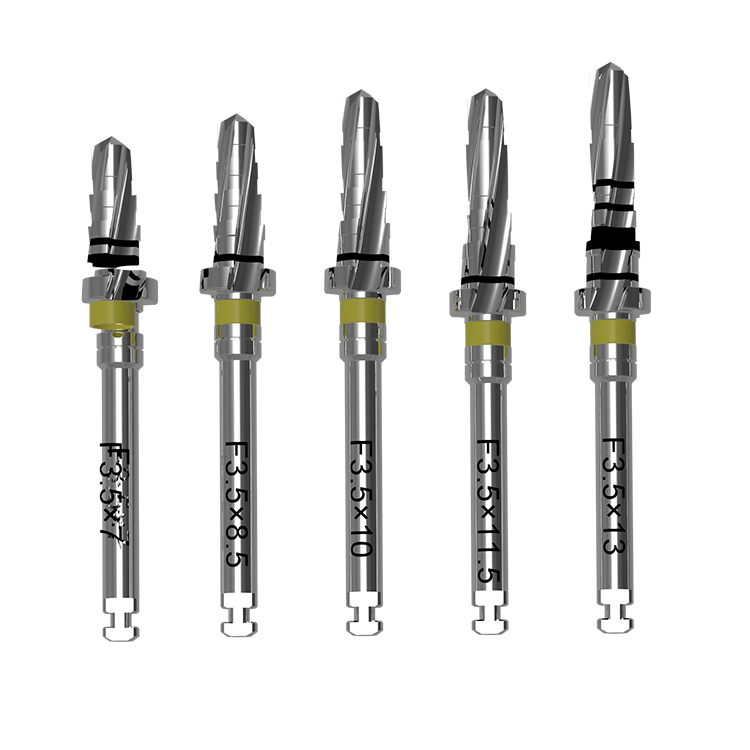

Depth Consistency: The twist drills share the same drilling depth as the Taper Drill, ensuring uniformity and precision.
Advantage: These drills provide a reliable and consistent method for initial marking and drilling, ensuring a smooth and accurate implant procedure.

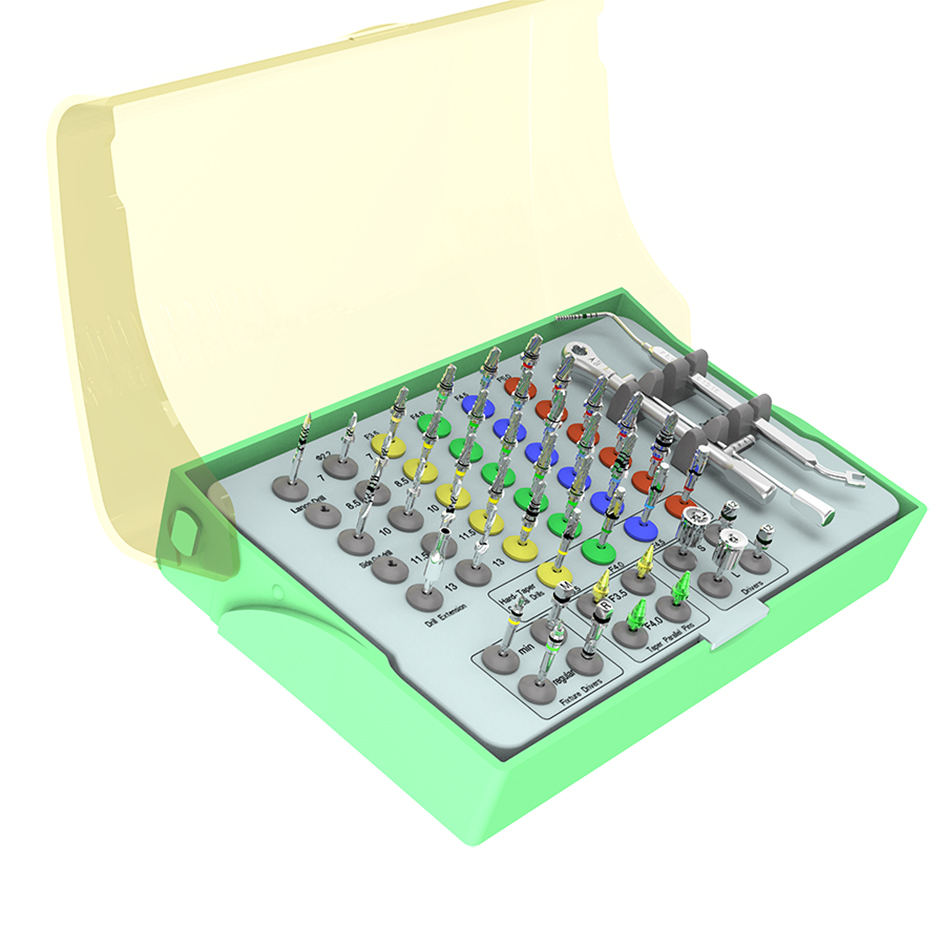

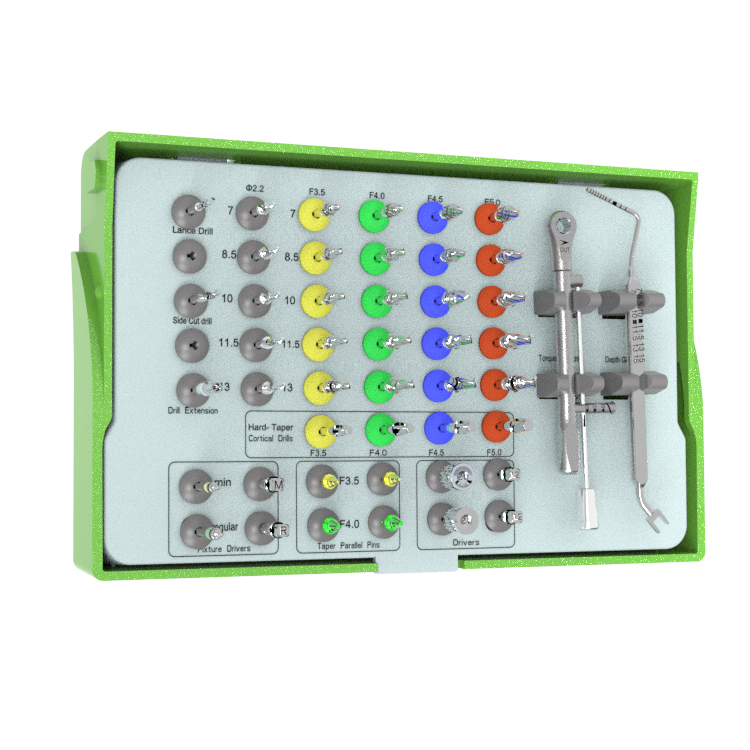

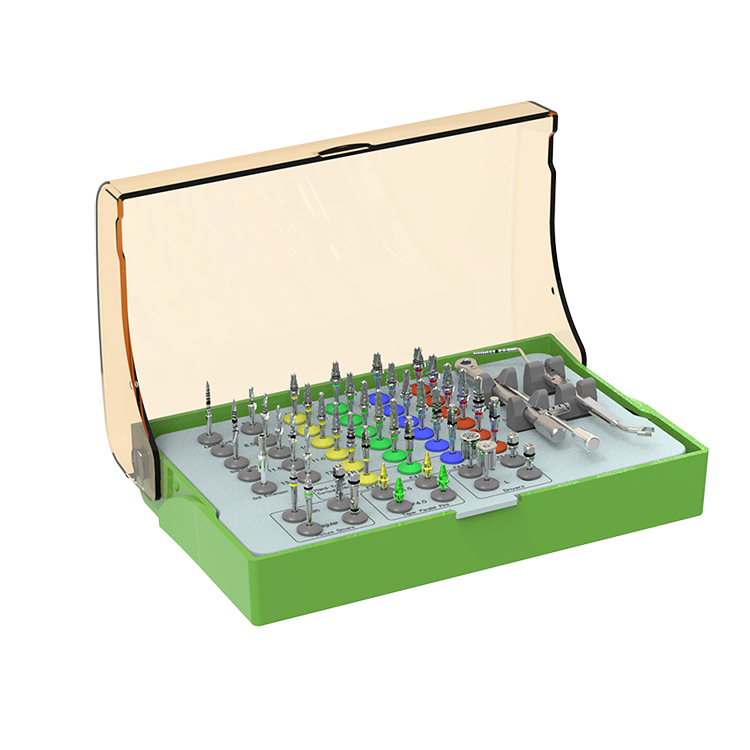

The Dental Implant Taper Kit is a comprehensive and precision-engineered toolset designed specifically for dental implant procedures. This kit is meticulously crafted to ensure accuracy, efficiency, and reliability in dental implant surgeries. It is compatible with the Osstem implant system, offering a seamless and high-quality solution for dental professionals.
