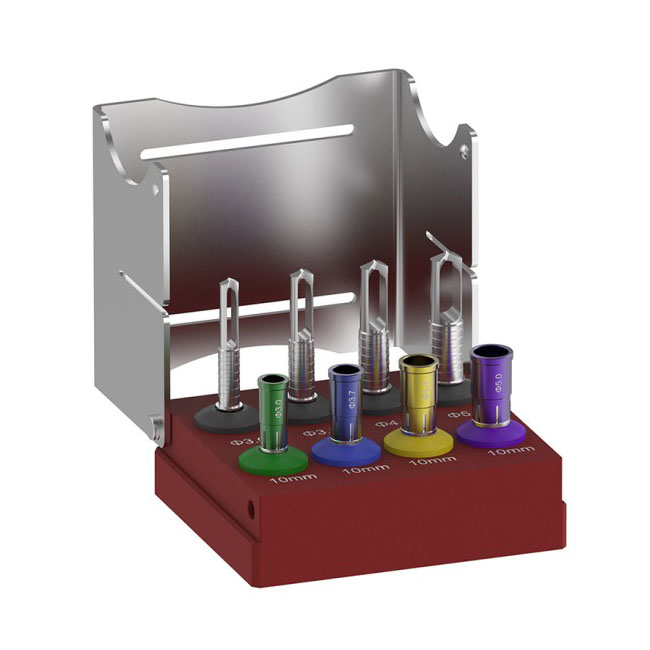

dental autogenous bone collector kit

Bone chip maker drills are specially designed with a pointed tip to efficiently harvest a large volume of autogenous bone.

The unique shape of the drills and the use of depth stoppers help minimize bone lossduring the procedure.

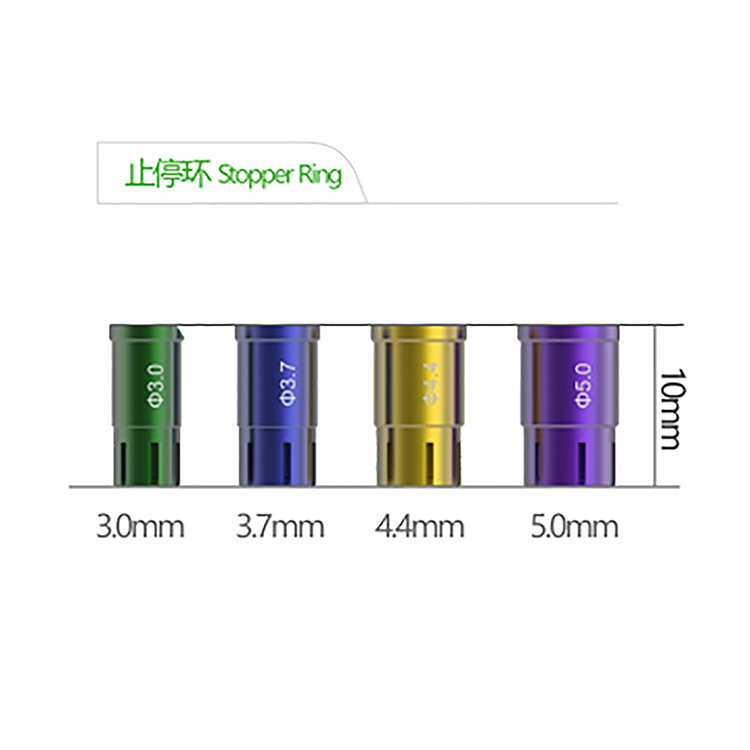

It is strongly recommendedto start with the 5mm stopper for initial drilling.

The drill is designed to collect bone chips in a single drilling motion, filling the chamber efficiently.

Short drilling duration helps prevent bone necrosisand maintains bone viability.

    Contact us
    product details
    product description

    description1

    description2

    Product Description

    Direction of use
    Key Advantages
    203
    • Select the appropriate bone chip maker drill and stopper based on the size of the bone harvesting area.
    • Attach the 5mm stopper to the drill as the initial step.
    • Start drilling with irrigation (recommended: 1cc of saline, 500 RPM).
    • Ensure the stopper is fully attached and verify the bone collection status during the process.
    203

    • Effectively harvests autogenous bone for grafting procedures.
    • Minimizes bone loss during collection.
    • Adjustable drilling depth allows customization based on surgical needs.
    • Reduces the risk of bone necrosis with short drilling times.
    • Efficient design enables one-step collection, improving clinical workflow.

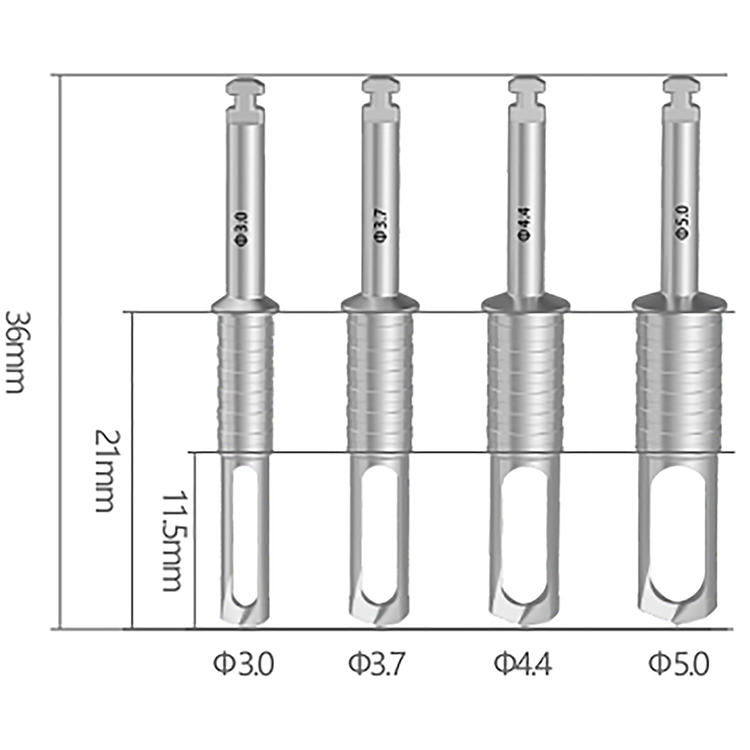

    Product size

    3_034_03

    sendinquiry

    FAQ

    Frequently Ask Questions
    Dongguan Gosmile Medical Technology Co., Ltd. is planned to be established in May 2017. Committed to providing integrated services of digitalization and implant accessories for clinics, hospitals, and laboratories.
    learn more

    Q1: Can the Bone Collector Kit be used without irrigation?

    A1: No. Irrigation (at least 1cc) is strongly recommended to prevent heat generation and bone necrosis during drilling.


    Q2: What RPM is recommended for drilling?

    A2: A drilling speed of 500 RPM is recommended for optimal bone collection and safety.


    Q3: Can I change the stopper depth during surgery?

    A3: Yes, you can change stoppers to adjust the drilling depth based on bone thickness and collection needs. Always begin with 5mm for safe entry.


    Q4: Is this kit reusable or single-use?

    A4: The components are typically reusable, but must be properly cleaned, disinfected, and sterilized according to clinical guidelines before each use.


    Q5: What kind of bone can be collected with this kit?

    A5: It is ideal for harvesting autogenous cortical and cancellous bone from intraoral sites.
